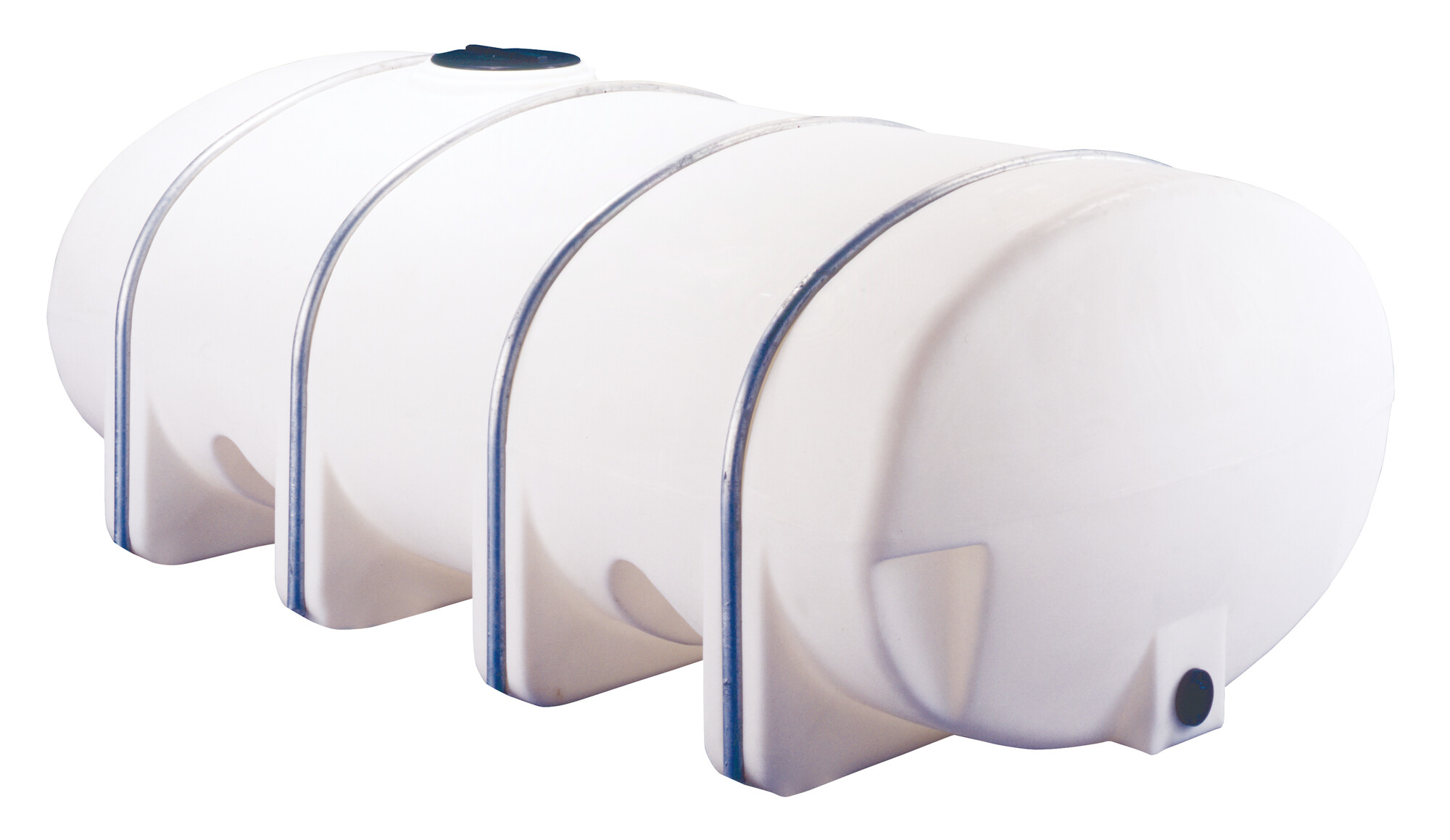

Elliptical Leg Tanks
Elliptical horizontal plastic leg tanks with molded-in legs that reduce profile height and tipping risk during transport. Integrated legs function as baffles to minimize sloshing.
Rotationally molded polyethylene
135 to 4,035 gallons
Certifications
Key Features
- Low profile design reduces tipping risk
- Molded-in legs serve as baffles
- Full-length bottom support
- Galvanized support bands available in multiple colors
- NSF and FDA approved for food-grade applications
- Available in black and translucent white
Applications
Specifications
| Capacity | Width | Height | Length | Fill Opening | Outlet |
|---|---|---|---|---|---|
| 135 gal | 36" | 26" | 56" | 8" | 1-1/4" |
| 235 gal | 40" | 32" | 66" | 8" | 2" |
| 335 gal | 48" | 33" | 71" | 16" | 2" |
| 535 gal | 57" | 39" | 80" | 16" | 2" |
| 1,035 gal | 79" | 54" | 89" | 16" | 2" |
| 1,235 gal | 66" | 53" | 128" | 16" | 2" |
| 1,335 gal | 66" | 55" | 126" | 16" | 2" |
| 1,635 gal | 71" | 58" | 142" | 16" | 2" |
| 2,035 gal | 84" | 56" | 142" | 16" | 2" |
| 2,635 gal | 90" | 72" | 140" | 16" | 3" |
| 3,135 gal | 88" | 80" | 150" | 16" | 3" |
| 4,035 gal | 92" | 75" | 192" | 16" | 3" |
